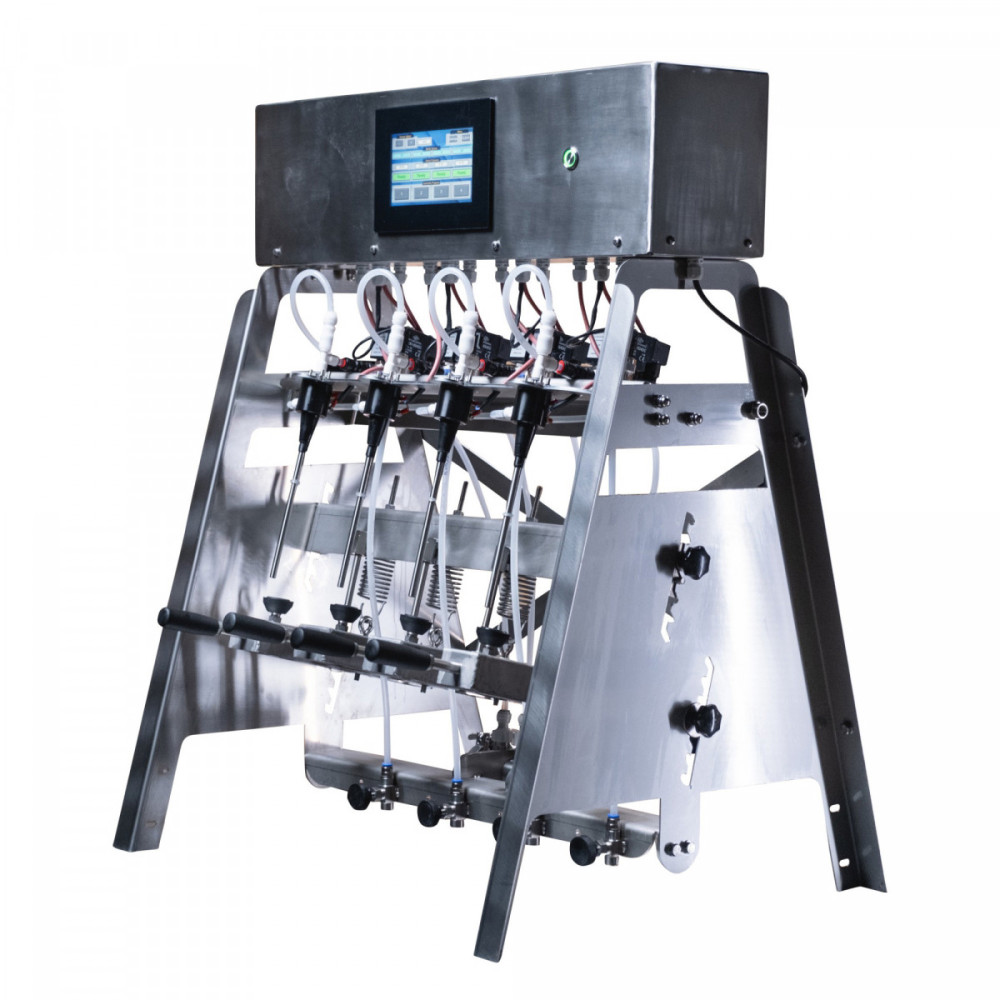

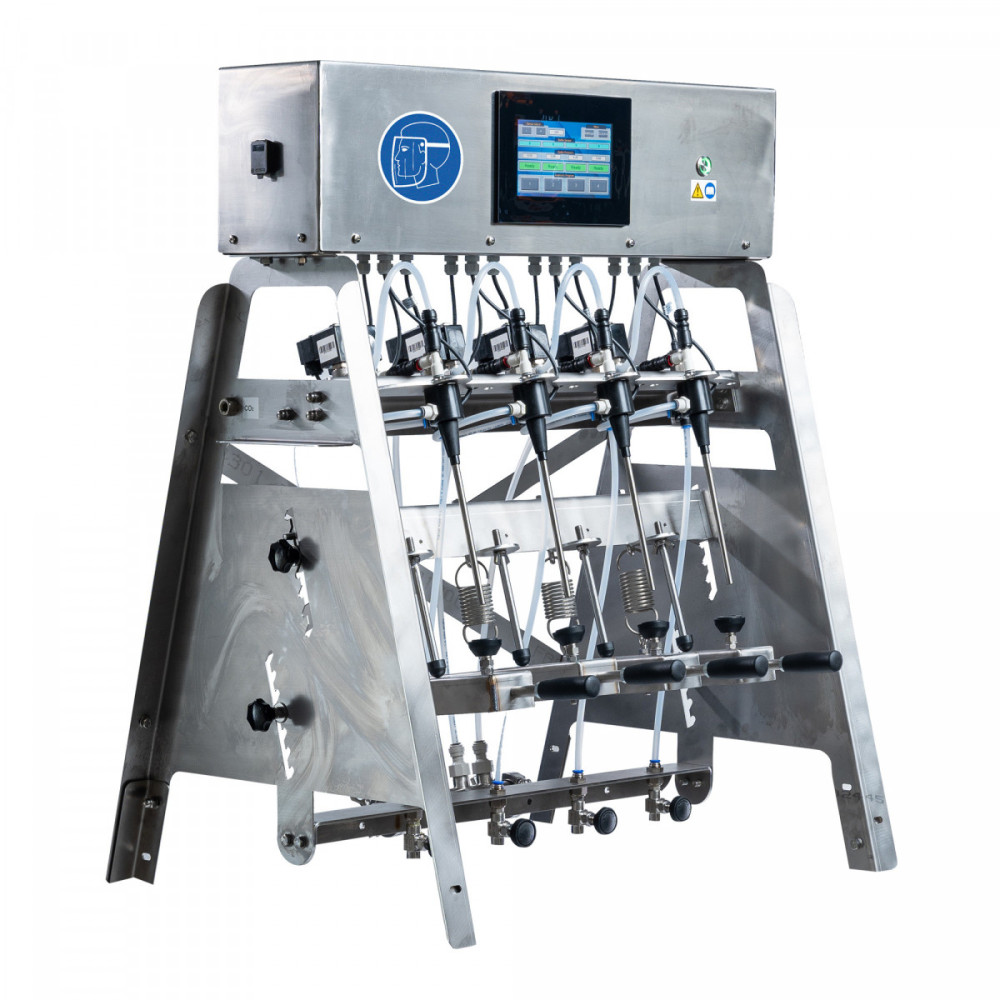

Rigters Manual Filler with CO2 Fast Flush - 4 heads

Rigtersfillers machines are designed and produced in the Netherlands using high quality parts and valves and with the end-user in mind.

Bottle height and filling height are adjustable. The machine can fill bottles between 0.2 and 1 litre. The 7” waterproof touchscreen is used to set all filling parameters: CO2 pre-purge time, filling time and pressure, etc. Filling is automated by just pressing a single button.

The maximum filling speed depends on several factors such as temperature (up to 4°C, we recommend max. 2°C), pressure on the brite tank (max. 1,2 bar) and CO2 saturation. Experience shows that up to 600 bottles can be filled per hour when operated by two people.

The machine can be cleaned in under 15 minutes.

Fast Flush system
This filler is equipped with a Fast Flush system, this means that it is possible to open an extra valve while PRE-purging CO2. This way flushing out O2 is faster and you get better shelf life (especially for bigger bottles and kegs).

Special features of the 1.2 version (2023)

Renewed software with the possibility of fine adjustment per filling head
USB connector for easy software updates
PowerCON connector for power supply


Easy to Operate:

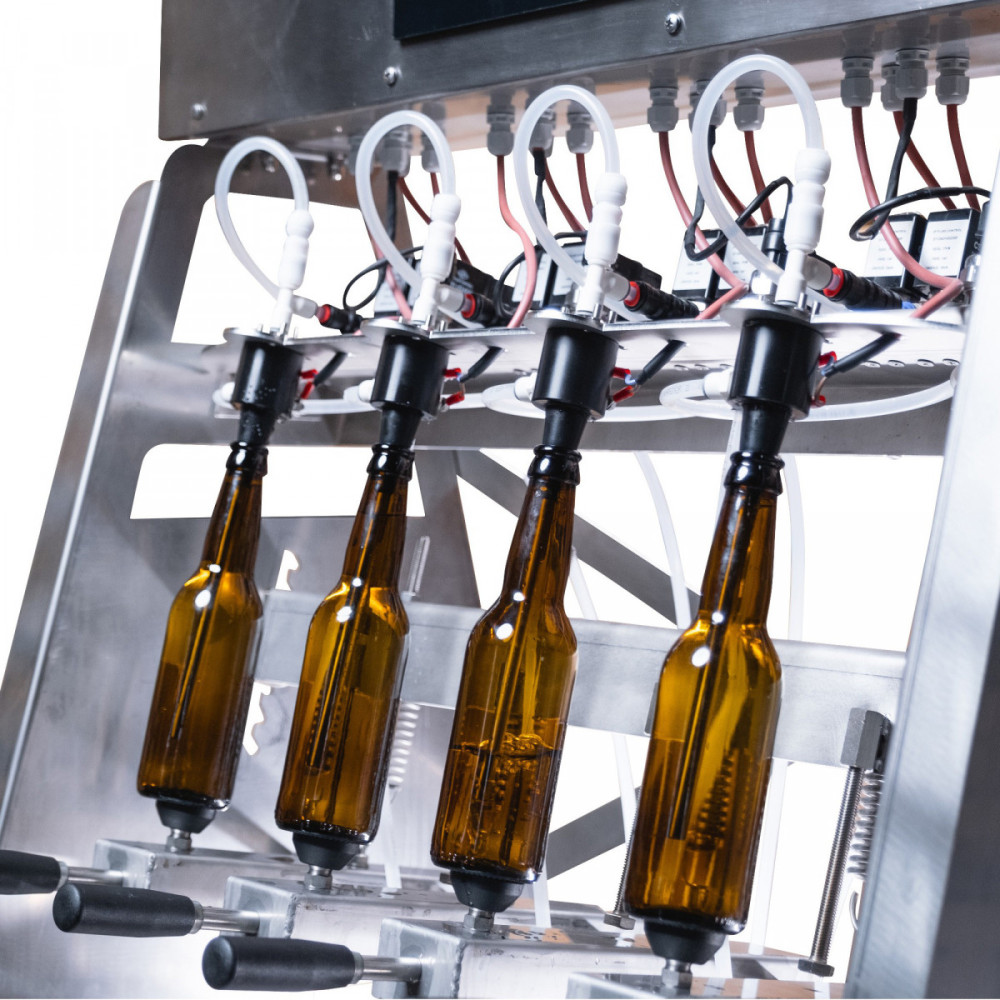

Lower the lever with one hand and with the other hand slide the bottle under the filling head. By releasing the lever, the bottle will be pressed into place under the filling head.
Press the start button of the relevant filling head. The filling will now happen automatically.
First, CO2 will be injected into the bottle so that oxygen disappears from the bottle. The time and pressure of the CO2 pre-rinse is fully adjustable.
After the CO2 flushing, the bottle will be filled until it reaches the sensor value set on the touchscreen.
You can now remove the bottle and start the process again.
The filling speed can be regulated so that when you put the last bottle under the head, the first one is ready to be replaced.


Specifications:

Power: 110-320V 3A max
Inputs: ¼” CO2 female inlet / liquid input: 1,5”TC
Capacity: +/- 150 bottles per hour per filling head when operated by two people (one for filling, one for capping)
Filling with or without counterpressure is possible. Max. tank/pump pressure: 1,2 bar
1 year carry-in warranty
Available options: stainless steel stand and filling heads for 5 litre party kegs (see accessories)


And there is more!
There is also an 8-filling head version of this counterpressure filler. Ask for a quote.
We have a demo machine on display in our shop. Feel free to drop by to take a look.
Would you like more information from a member of our professional sales team? Please contact us.


Rigtersfillers: made by brewers for brewers
Rigtersfillers was created in 2011 when the brewers of Rigtersbier decided to develop and build their own counter pressure bottle filler. Videos of this machine were shared en masse and soon they got requests from other brewers to build machines for them. This is how "Rigtersfillers" originated from Rigtersbier. Now they deliver machines worldwide and are continuously working on new developments.
